產品說明

主要特征

技術指標

適用行業

資源下載

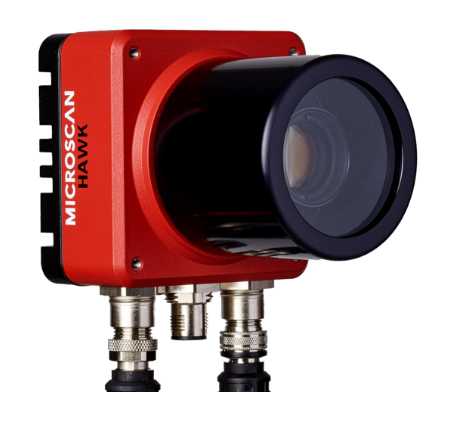

HAWK MV-4000堅固的外殼內裝有令人驚嘆的處理能力和優異的靈活性。這款智能相機采用FPGA，將上一代的處理能力提高了數倍，實現了實時觸發響應。擁有領先的算法，HAWK MV-4000可以成為各行業實現代碼閱讀，代碼驗證，檢查，引導定位，測量或各種組合功能的理想工具。

HAWK MV-4000的以圖像為中心的用戶界面和拖放式編程使設置變得簡單。普通的操作員或技術人員會喜歡直觀的AutoVISION用戶界面（UI），可以使用讀取，驗證和視覺工具隨時讀取。機器視覺方面的專家將可以訪問另一個名為FrontRunner的界面，以獲得HAWK MV-4000的全部潛力。

擁有幾乎達到基于PC系統速度的處理能力，這個智能相機可以真正實現以一當十。 IVision的工程師們把它稱為基于PC的相機和市場上普通的智能相機之間的“黃金中心”。使用HAWK MV-4000，不需要外部處理即可達到每分鐘4,000至14,000個零件的檢查率。

邁思肯Microscan HAWK MV-4000 智能相機型號表
Part Number	Description
8011-0000-0100	HAWK MV-4000-03, 0.3 MP (640X480), MONO, AV SENSOR
8011-0000-0101	HAWK MV-4000-03, 0.3 MP (640X480), MONO, AV
8011-0000-0102	HAWK MV-4000-03, 0.3 MP (640X480), MONO, AV+VS
8011-0000-0103	HAWK MV-4000-03, 0.3 MP (640X480), MONO, AV+VERIF/OCV
8011-0000-0104	HAWK MV-4000-03, 0.3 MP (640X480), MONO, AV+VS+VERIF/OCV
1.3 MP Mono
8012-0000-0100	HAWK MV-4000-13, 1.3 MP (1280X1024), MONO, AV SENSOR
8012-0000-0101	HAWK MV-4000-13, 1.3 MP (1280X1024), MONO, AV
8012-0000-0102	HAWK MV-4000-13, 1.3 MP (1280X1024), MONO, AV+VS
8012-0000-0103	HAWK MV-4000-13, 1.3 MP (1280X1024), MONO, AV+VERIF/OCV
8012-0000-0104	HAWK MV-4000-13, 1.3 MP (1280X1024), MONO, AV+VS+VERIF/OCV
2.0 MP Mono
8013-0000-0100	HAWK MV-4000-20, 2.0 MP (1920X1200), MONO, AV SENSOR
8013-0000-0101	HAWK MV-4000-20, 2.0 MP (1920X1200), MONO, AV
8013-0000-0102	HAWK MV-4000-20, 2.0 MP (1920X1200), MONO, AV+VS
8013-0000-0103	HAWK MV-4000-20, 2.0 MP (1920X1200), MONO, AV+VERIF/OCV
8013-0000-0104	HAWK MV-4000-20, 2.0 MP (1920X1200), MONO, AV+VS+VERIF/OCV
5.0 MP Mono
8014-0000-0100	HAWK MV-4000-50, 5.0 MP (2592X2048), MONO, AV SENSOR
8014-0000-0101	HAWK MV-4000-50, 5.0 MP (2592X2048), MONO, AV
8014-0000-0102	HAWK MV-4000-50, 5.0 MP (2592X2048), MONO, AV+VS
8014-0000-0103	HAWK MV-4000-50, 5.0 MP (2592X2048), MONO, AV+VERIF/OCV
8014-0000-0104	HAWK MV-4000-50, 5.0 MP (2592X2048), MONO, AV+VS+VERIF/OCV
0.3 MP Color
8015-0000-0100	HAWK MV-4000-03C, 0.3 MP (640X480), COLOR, AV SENSOR
8015-0000-0101	HAWK MV-4000-03C, 0.3 MP (640X480), COLOR, AV
8015-0000-0102	HAWK MV-4000-03C, 0.3 MP (640X480), COLOR, AV+VS
8015-0000-0103	HAWK MV-4000-03C, 0.3 MP (640X480), COLOR, AV+VERIF/OCV
8015-0000-0104	HAWK MV-4000-03C, 0.3 MP (640X480), COLOR, AV+VS+VERIF/OCV
1.3 MP Color
8016-0000-0100	HAWK MV-4000-13C, 1.3 MP (1280X1024), COLOR, AV SENSOR
8016-0000-0101	HAWK MV-4000-13C, 1.3 MP (1280X1024), COLOR, AV
8016-0000-0102	HAWK MV-4000-13C, 1.3 MP (1280X1024), COLOR, AV+VS
8016-0000-0103	HAWK MV-4000-13C, 1.3 MP (1280X1024), COLOR, AV+VERIF/OCV
8016-0000-0104	HAWK MV-4000-13C, 1.3 MP (1280X1024), COLOR, AV+VS+VERIF/OCV
2.0 MP Color
8017-0000-0100	HAWK MV-4000-20C, 2.0 MP (1920X1200), COLOR, AV SENSOR
8017-0000-0101	HAWK MV-4000-20C, 2.0 MP (1920X1200), COLOR, AV
8017-0000-0102	HAWK MV-4000-20C, 2.0 MP (1920X1200), COLOR, AV+VS
8017-0000-0103	HAWK MV-4000-20C, 2.0 MP (1920X1200), COLOR, AV+VERIF/OCV
8017-0000-0104	HAWK MV-4000-20C, 2.0 MP (1920X1200), COLOR, AV+VS+VERIF/OCV
5.0 MP Color
8018-0000-0100	HAWK MV-4000-50C, 5.0 MP (2592X2048), COLOR, AV SENSOR
8018-0000-0101	HAWK MV-4000-50C, 5.0 MP (2592X2048), COLOR, AV
8018-0000-0102	HAWK MV-4000-50C, 5.0 MP (2592X2048), COLOR, AV+VS
8018-0000-0103	HAWK MV-4000-50C, 5.0 MP (2592X2048), COLOR, AV+VERIF/OCV
8018-0000-0104	HAWK MV-4000-50C, 5.0 MP (2592X2048), COLOR, AV+VS+VERIF/OCV


HAWK 4000 LENSES AND LENS CAPS
Standard Resolution for 2/3" Sensors - (General Inspection, Reading, Some Verification)
98-9000167-01	LENS, C-MOUNT, 6MM, STANDARD RES, 2/3" SENSOR
98-9000168-01	LENS, C-MOUNT, 9MM, STANDARD RES, 2/3" SENSOR
98-9000169-01	LENS, C-MOUNT, 12.5MM, STANDARD RES, 2/3" SENSOR
98-9000170-01	LENS, C-MOUNT, 16MM, STANDARD RES, 2/3" SENSOR
98-9000171-01	LENS, C-MOUNT, 25MM, STANDARD RES, 2/3" SENSOR
98-9000172-01	LENS, C-MOUNT, 35MM, STANDARD RES, 2/3" SENSOR
High Resolution for 2/3" Sensors - (Gauging, Verification)
98-9000192-01	LENS, C-MOUNT, 6MM, HIGH RES, 2/3" SENSOR
98-9000165-01	LENS, C-MOUNT, 8MM, HIGH RES, 2/3" SENSOR
98-9000166-01	LENS, C-MOUNT, 12MM, HIGH RES, 2/3" SENSOR
98-9000154-01	LENS, C-MOUNT, 16MM, HIGH RES, 2/3" SENSOR
98-9000164-01	LENS, C-MOUNT, 25MM, HIGH RES, 2/3" SENSOR
98-9000163-01	LENS, C-MOUNT, 35MM, HIGH RES, 2/3" SENSOR
High Resolution for 1" Sensors - (All applications. Required for 1" 5 MP Sensor)
98-9000174-01	LENS, C-MOUNT, 12.5MM, HIGH RES, 1" SENSOR
98-9000175-01	LENS, C-MOUNT, 16MM, HIGH RES, 1" SENSOR
98-9000176-01	LENS, C-MOUNT, 25MM, HIGH RES, 1" SENSOR
98-9000177-01	LENS, C-MOUNT, 35MM, HIGH RES, 1" SENSOR
C-Mount Liquid Lens
98-9000179-01	LENS, LIQUID, C-MOUNT, F2.8/16MM, 2/3" SENSOR, I2C INTERFACE
98-9000178-01	LENS, LIQUID, C-MOUNT, F4/25MM, 2/3" SENSOR, I2C INTERFACE
Lens Accessories
98-9000155-01	IP67 LENS COVER FOR HAWK 4000, 50MM LENGTH
98-9000156-01	IP67 LENS COVER HAWK 4000, 70MM LENGTH
98-CO206	Lens Extension Tube Set, 0.5 mm, 1 mm, 5 mm, 10 mm, 20 mm, 40 mm


HAWK 4000 CABLES, LIGHT CONTROL CABLE AND POWER SUPPLY
HAWK 4000 X-CODE Ethernet Port Cables
61-9000134-01	CABLE, HAWK 4000 ETHERNET, X-CODE/RJ45 CAT 6A, 1 METER
61-9000134-02	CABLE, HAWK 4000 ETHERNET, X-CODE/RJ45 CAT 6A, 3 METER
61-9000134-03	CABLE, HAWK 4000 ETHERNET, X-CODE/RJ45 CAT 6A, 5 METER
HAWK 4000 VGA/USB Port Connector Cables
61-9000143-01	CABLE, HAWK 4000 M12 TO USB FEMALE, 1 METER
61-9000147-01	CABLE, HAWK 4000 M12 TO VGA & USB, 1 METER
HAWK 4000 Digital IO Port Connector Cables
61-9000132-01	CABLE, ADAPTER, HAWK 4000 TO ACCESSORY CABLES/POWER SUPPLY (Supplied with camera)
61-9000151-01	CABLE, HAWK 4000 M12 TO FLYING LEADS, 3 METER (NO ADAPTOR NEEDED)
QX-1 Interface Cables and Accessories
61-000162-02	QX CORDSET, HAWK 4000 ADAPTOR TO QX-1 M12 PLUG (SCREW-ON), 1 METER
61-000148-02	QX CORDSET, HAWK 4000 ADAPTOR TO QX-1 M12 PLUG (SCREW-ON), 3 METER
98-000103-02	QX-1 INTERFACE DEVICE
99-000020-02	QX Photo Sensor, M12 4-Pin Plug, NPN, Dark On, 2 meter
99-000020-01	QX Photo Sensor, M12 4-Pin Plug, NPN, Dark Off, 2 meter
20-610024-01	Trigger Connector, 4-Pin Plug (Screw Terminal, Field-Wireable) (Self-Wiring)
SMART LIGHT CONTROL CABLES
61-9000135-01	Y CABLE, HAWK 4000 ADAPTOR TO SMART LIGHT AND QX-1, POWER, 1 METER
61-9000136-01	Y CABLE, HAWK 4000 ADAPTOR TO SMART LIGHT AND QX-1, ON/OFF, 1 METER
61-9000137-01	Y CABLE, HAWK 4000 ADAPTOR TO SMART LIGHT AND QX-1, STROBE, 1 METER
61-000204-01	CABLE, QX-1 TO SMART LIGHT, CONTINUOUS POWER
61-000207-01	CABLE, QX-1 TO SMART LIGHT, ON/OFF
61-000218-01*	CABLE, QX-1 TO SMART LIGHT, STROBE
Power Supply
97-000012-01	Power Supply, 100-240VAC, +24VDC, M12 12-pin Socket


HAWK 4000 AND SMART LIGHT MOUNTS
Standard Mounts
TBD	UNIVERSAL MOUNT, HAWK 4000
98-9000054-01	APG MOUNT, HAWK 4000 (REQUIRES UNIVERSAL MOUNT)
Smart Light/HAWK 4000 Mounting Kits
98-9000120-01	KIT, BRACKET, MAX 300 TO HAWK 4000
98-9000121-01	KIT, BRACKET, DOAL TO HAWK 4000
98-9000122-01	KIT, BRACKET, RING 60/70 TO HAWK 4000
98-9000123-01	KIT, BRACKET, RING 100 TO HAWK 4000
98-9000137-01	KIT, SMART SERIES PHARMALITE, ARCHERFISH


LICENSING
HAWK 4000 License Upgrades
LIC-0700-003*	LICENSE,MACHINE VISION,AUTOVISION
LIC-0700-006*	LICENSE,MACHINE VISION,VISIONSCAPE
LIC-0700-009*	LICENSE,MACHINE VISION,VERIFICATION/OCV
LIC-0700-011*	LICENSE,MACHINE VISION,AUTOVISION SENSOR
LIC-0700-325*	LICENSE,MACHINE VISION,MACHINE VISION UNLOCK


Camera Kits - with License, Lens, IP Cover and Mount
0.3 MP, Standard Lens
8211-1090-0102	HAWK MV-4000-03, AV+VS, 9MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
8111-1160-0102	HAWK MV-4000-03, AV+VS, 16MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
1.3 MP, Standard Lens
8112-1120-0104	HAWK MV-4000-13, AV+VS+VERIF/OCV, 12.5MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
8112-1250-0104	HAWK MV-4000-13, AV+VS+VERIF/OCV, 25MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
1.3 MP, High Res Lens
8212-2160-0104	HAWK MV-4000-13, AV+VS+VERIF/OCV, 16MM HIGH RES LENS, IP COVER, UNIVERSAL MOUNT
8212-2250-0104	HAWK MV-4000-13, AV+VS+VERIF/OCV, 25MM HIGH RES LENS, IP COVER, UNIVERSAL MOUNT
8212-2350-0104	HAWK MV-4000-13, AV+VS+VERIF/OCV, 35MM HIGH RES LENS, IP COVER, UNIVERSAL MOUNT
2.0 MP, Standard Lens
8113-1160-0104	HAWK MV-4000-20, AV+VS+VERIF/OCV, 16MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
8113-1350-0104	HAWK MV-4000-20, AV+VS+VERIF/OCV, 35MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
2.0 MP, High Res Lens
8213-2160-0104	HAWK MV-4000-20, AV+VS+VERIF/OCV, 16MM HIGH RES LENS, IP COVER, UNIVERSAL MOUNT
8213-2250-0104	HAWK MV-4000-20, AV+VS+VERIF/OCV, 25MM HIGH RES LENS, IP COVER, UNIVERSAL MOUNT
8213-2350-0104	HAWK MV-4000-20, AV+VS+VERIF/OCV, 35MM HIGH RES LENS, IP COVER, UNIVERSAL MOUNT
2.0 Color, Standard Lens
8117-1090-0102	HAWK MV-4000-20C, AV+VS, 9MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
8117-1160-0102	HAWK MV-4000-20C, AV+VS, 16MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
8117-1350-0102	HAWK MV-4000-20C, AV+VS, 35MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
5.0 MP, 1" Lens
8014-3160-0104	HAWK MV-4000-50, AV+VS+VERIF/OCV, 16MM 1" LENS, NO COVER, UNIVERSAL MOUNT
8214-3250-0104	HAWK MV-4000-50, AV+VS+VERIF/OCV, 25MM 1" LENS, IP COVER, UNIVERSAL MOUNT
8214-3350-0104	HAWK MV-4000-50, AV+VS+VERIF/OCV, 35MM 1" LENS, IP COVER, UNIVERSAL MOUNT

型號	HAWK MV-4000-03	HAWK MV-4000-03C	HAWK MV-4000-13	HAWK MV-4000-13C	HAWK MV-4000-20	HAWK MV-4000-20C	HAWK MV-4000-50	HAWK MV-4000-50C
	傳感器
品牌和型號	安森美半導體 – Python 系列 (NOIP1SN 或 NOIP1SE)				安森美半導體 – Python 系列 (NOIP1SN 或 NOIP1SE)
類型	CMOS
芯片尺寸	1/4”-Type		1/2”-Type		2/3”-Type		1”-Type
格式	黑白	彩色	黑白	彩色	黑白	彩色	黑白	彩色
分辨率 (H x V)	640 x 480		1280 x 1024		1920 x 1200		2592 x 2048
有效幀率	最高 240 FPS	最高 120 FPS	最高 75 FPS	最高 32 FPS	最高 42 FPS	最高 20 FPS	最高 21 FPS	最高8.5 FPS
像素尺寸 (H x V)	4.8 μm x 4.8 μm
增益范圍	0 至 19.4 dB
快門速度	50 μsec 至 4 sec
觸發器響應	外部觸發器輸出延遲 = 10μs。抖動= 1 - 2μs。
	處理器，內存及存儲
處理器	雙核
內存	2GB RAM
存儲	32GB
	接口
網絡	千兆以太網
HMI	VGA 和 USB 2.0 (連接鍵盤和鼠標)
數字 I/O	3個光耦輸入（帶增量旋轉編碼器支持），1個專用光耦觸發，3個外部選通輸出
其他	Varioptic Caspian 自動對焦鏡頭專用接口
	機械，電氣，環保
鏡頭類型	C-Mount
連接器	M12 8針以太網插座; M12 12針插座，用于電源，數字I / O和LED照明強度控制; M12 12針插頭用于VGA和USB
重量	460 g
能量消耗	450 mA @ 24VDC 或 10.8W (一般情況)

邁思肯Microscan HAWK MV-4000 智能相機附件表

This section contains information about system components as well as information to help you connect the HAWK MV-4000 Smart Camera. Specific information describes connectors, adapters, cables, pinouts, and signals.
HAWK MV-4000 Smart Cameras (All cameras ship with an adapter cable.)
0.3 Megapixel Mono
8011-0000-0100		HAWK MV-4000-03, 0.3 Megapixel (640 x 480), Mono, AutoVISION Sensor
8011-0000-0101		HAWK MV-4000-03, 0.3 Megapixel (640 x 480), Mono, AutoVISION
8011-0000-0102		HAWK MV-4000-03, 0.3 Megapixel (640 x 480), Mono, AutoVISION + Visionscape
8011-0000-0103		HAWK MV-4000-03, 0.3 Megapixel (640 x 480), Mono, AutoVISION + Verification / OCV
8011-0000-0104		HAWK MV-4000-03, 0.3 Megapixel (640 x 480), Mono, AutoVISION + Visionscape + Verification / OCV
1.3 Megapixel Mono
8012-0000-0100		HAWK MV-4000-13, 1.3 Megapixel (1280 x 1024), Mono, AutoVISION Sensor
8012-0000-0101		HAWK MV-4000-13, 1.3 Megapixel (1280 x 1024), Mono, AutoVISION
8012-0000-0102		HAWK MV-4000-13, 1.3 Megapixel (1280 x 1024), Mono, AutoVISION + Visionscape
8012-0000-0103		HAWK MV-4000-13, 1.3 Megapixel (1280 x 1024), Mono, AutoVISION + Verification / OCV
8012-0000-0104		HAWK MV-4000-13, 1.3 Megapixel (1280 x 1024), Mono, AutoVISION + Visionscape + Verification / OCV
2.0 Megapixel Mono
8013-0000-0100		HAWK MV-4000-20, 2.0 Megapixel (1920 x 1200), Mono, AutoVISION Sensor
8013-0000-0101		HAWK MV-4000-20, 2.0 Megapixel (1920 x 1200), Mono, AutoVISION
8013-0000-0102		HAWK MV-4000-20, 2.0 Megapixel (1920 x 1200), Mono, AutoVISION + Visionscape
8013-0000-0103		HAWK MV-4000-20, 2.0 Megapixel (1920 x 1200), Mono, AutoVISION + Verification / OCV
8013-0000-0104		HAWK MV-4000-20, 2.0 Megapixel (1920 x 1200), Mono, AutoVISION + Visionscape + Verification / OCV
5.0 Megapixel Mono
8014-0000-0100		HAWK MV-4000-50, 5.0 Megapixel (2592 x 2048), Mono, AutoVISION Sensor
8014-0000-0101		HAWK MV-4000-50, 5.0 Megapixel (2592 x 2048), Mono, AutoVISION
8014-0000-0102		HAWK MV-4000-50, 5.0 Megapixel (2592 x 2048), Mono, AutoVISION + Visionscape
8014-0000-0103		HAWK MV-4000-50, 5.0 Megapixel (2592 x 2048), Mono, AutoVISION + Verification / OCV
8014-0000-0104		HAWK MV-4000-50, 5.0 Megapixel (2592 x 2048), Mono, AutoVISION + Visionscape + Verification / OCV
0.3 Megapixel Color
8015-0000-0100		HAWK MV-4000-03C, 0.3 Megapixel (640 x 480), Color, AutoVISION Sensor
8015-0000-0101		HAWK MV-4000-03C, 0.3 Megapixel (640 x 480), Color, AutoVISION
8015-0000-0102		HAWK MV-4000-03C, 0.3 Megapixel (640 x 480), Color, AutoVISION + Visionscape
8015-0000-0103		HAWK MV-4000-03C, 0.3 Megapixel (640 x 480), Color, AutoVISION + Verification / OCV
8015-0000-0104		HAWK MV-4000-03C, 0.3 Megapixel (640 x 480), Color, AutoVISION + Visionscape + Verification / OCV
1.3 Megapixel Color
8016-0000-0100		HAWK MV-4000-13C, 1.3 Megapixel (1280 x 1024), Color, AutoVISION Sensor
8016-0000-0101		HAWK MV-4000-13C, 1.3 Megapixel (1280 x 1024), Color, AutoVISION
8016-0000-0102		HAWK MV-4000-13C, 1.3 Megapixel (1280 x 1024), Color, AutoVISION + Visionscape
8016-0000-0103		HAWK MV-4000-13C, 1.3 Megapixel (1280 x 1024), Color, AutoVISION + Verification / OCV
8016-0000-0104		HAWK MV-4000-13C, 1.3 Megapixel (1280 x 1024), Color, AutoVISION + Visionscape + Verification / OCV
2.0 Megapixel Color
8017-0000-0100		HAWK MV-4000-20C, 2.0 Megapixel (1920 x 1200), Color, AutoVISION Sensor
8017-0000-0101		HAWK MV-4000-20C, 2.0 Megapixel (1920 x 1200), Color, AutoVISION
8017-0000-0102		HAWK MV-4000-20C, 2.0 Megapixel (1920 x 1200), Color, AutoVISION + Visionscape
8017-0000-0103		HAWK MV-4000-20C, 2.0 Megapixel (1920 x 1200), Color, AutoVISION + Verification / OCV
8017-0000-0104		HAWK MV-4000-20C, 2.0 Megapixel (1920 x 1200), Color, AutoVISION + Visionscape + Verification / OCV
5.0 Megapixel Color
8018-0000-0100		HAWK MV-4000-50C, 5.0 Megapixel (2592 x 2048), Color, AutoVISION Sensor
8018-0000-0101		HAWK MV-4000-50C, 5.0 Megapixel (2592 x 2048), Color, AutoVISION
8018-0000-0102		HAWK MV-4000-50C, 5.0 Megapixel (2592 x 2048), Color, AutoVISION + Visionscape
8018-0000-0103		HAWK MV-4000-50C, 5.0 Megapixel (2592 x 2048), Color, AutoVISION + Verification / OCV
8018-0000-0104		HAWK MV-4000-50C, 5.0 Megapixel (2592 x 2048), Color, AutoVISION + Visionscape + Verification / OCV
HAWK MV-4000 Lenses and Lens Caps
Standard Resolution for 2/3" Sensors (General Inspection, Reading, Some Verification)
98-9000167-01		Lens, C-Mount, 6 mm, Standard Resolution, 2/3" Sensor
98-9000168-01		Lens, C-Mount, 9 mm, Standard Resolution, 2/3" Sensor
98-9000169-01		Lens, C-Mount, 12.5 mm, Standard Resolution, 2/3" Sensor
98-9000170-01		Lens, C-Mount, 16 mm, Standard Resolution, 2/3" Sensor
98-9000171-01		Lens, C-Mount, 25 mm, Standard Resolution, 2/3" Sensor
98-9000172-01		Lens, C-Mount, 35 mm, Standard Resolution, 2/3" Sensor
High Resolution for 2/3" Sensors (Gauging, Verification)
98-9000192-01		Lens, C-Mount, 6 mm, High Resolution, 2/3" Sensor
98-9000165-01		Lens, C-Mount, 8 mm, High Resolution, 2/3" Sensor
98-9000166-01		Lens, C-Mount, 12 mm, High Resolution, 2/3" Sensor
98-9000154-01		Lens, C-Mount, 16 mm, High Resolution, 2/3" Sensor
98-9000164-01		Lens, C-Mount, 25 mm, High Resolution, 2/3" Sensor
98-9000163-01		Lens, C-Mount, 35 mm, High Resolution, 2/3" Sensor
High Resolution for 1" Sensors (All applications. Required for 1" 5 Megapixel Sensor)
98-9000174-01		Lens, C-Mount, 12.5 mm, High Resolution, 1" Sensor
98-9000175-01		Lens, C-Mount, 16 mm, High Resolution, 1" Sensor
98-9000176-01		Lens, C-Mount, 25 mm, High Resolution, 1" Sensor
98-9000177-01		Lens, C-Mount, 35 mm, High Resolution, 1" Sensor
C-Mount Liquid Lens
98-9000179-01		Lens, Liquid, C-Mount, F2.8/16 mm, 2/3" Sensor, I2C Interface
98-9000178-01		Lens, Liquid, C-Mount, F4/25 mm, 2/3" Sensor, I2C Interface
Lens Accessories
98-9000155-01		IP67 Lens Cover for HAWK MV-4000, 50 mm Length
98-9000156-01		IP67 Lens Cover HAWK MV-4000, 70 mm Length
98-CO206		Lens Extension Tube Set, 0.5 mm, 1 mm, 5 mm, 10 mm, 20 mm, 40 mm
HAWK MV-4000 Cables, Smart Series Illuminator Control Cable, and Power Supply
HAWK MV-4000 X-CODE Ethernet Port Cables
61-9000134-01		Cable, HAWK MV-4000 Ethernet, X-CODE / RJ45 CAT 6A, 1 m
61-9000134-02		Cable, HAWK MV-4000 Ethernet, X-CODE / RJ45 CAT 6A, 3 m
61-9000134-03		Cable, HAWK MV-4000 Ethernet, X-CODE / RJ45 CAT 6A, 5 m
HAWK MV-4000 VGA / USB Port Connector Cables
61-9000143-01		Cable, HAWK MV-4000 M12 to USB Socket, 1 m
61-9000147-01		Cable, HAWK MV-4000 M12 to VGA and USB, 1 m
HAWK MV-4000 Digital I/O Port Connector Cables
61-9000132-01		Cable, Adapter, HAWK MV-4000 to Accessory Cables / Power Supply (Supplied with camera)
61-9000151-01		Cable, HAWK MV-4000 M12 to Flying Leads, 3 m (No Adapter Required)
QX-1 Interface Cables and Accessories
61-000162-02		QX Cordset, HAWK MV-4000 Adapter to QX-1 M12 Plug (Screw-On), 1 m
61-000148-02		QX Cordset, HAWK MV-4000 Adapter to QX-1 M12 Plug (Screw-On), 3 m
98-000103-02		QX-1 Interface Device
99-000020-02		QX Photo Sensor, M12 4-Pin Plug, NPN, Dark On, 2 m
99-000020-01		QX Photo Sensor, M12 4-Pin Plug, NPN, Dark Off, 2 m
20-610024-01		Trigger Connector, 4-Pin Plug (Screw Terminal, Field-Wireable) (Self-Wiring)
Smart Series Illuminator Control Cables
61-9000135-01		Y Cable, HAWK MV-4000 Adapter to Smart Series Illuminator and QX-1, Power, 1 m
61-9000137-01		Y Cable, HAWK MV-4000 Adapter to Smart Series Illuminator and QX-1, Strobe, 1 m
61-000204-01		Cable, QX-1 to Smart Series Illuminator, Continuous Power
61-000218-01*		Cable, QX-1 to Smart Series Illuminator, Strobe
Power Supply
97-000012-01		Power Supply, 100-240VAC, +24VDC, M12 12-pin Socket
HAWK MV-4000 and Smart Series Illuminator Mount
Standard Mount
98-9000054-01		APG Mount, HAWK MV-4000 (Requires Universal Mount)
Smart Series Illuminator / HAWK MV-4000 Mounting Kits
98-9000120-01		Kit, Bracket, MAX 300 to HAWK MV-4000
98-9000121-01		Kit, Bracket, DOAL to HAWK MV-4000
98-9000122-01		Kit, Bracket, Ring 60 / 70 to HAWK MV-4000
98-9000123-01		Kit, Bracket, Ring 100 to HAWK MV-4000
98-9000137-01		Kit, Smart Series Pharmalite, HAWK MV-4000
Licensing
HAWK MV-4000 License Upgrades
LIC-0700-003*		License, Machine Vision, AutoVISION
LIC-0700-006*		License, Machine Vision, Visionscape
LIC-0700-009*		License, Machine Vision,Verification / OCV
LIC-0700-011*		License, Machine Vision, AutoVISION Sensor
LIC-0700-325*		License, Machine Vision, Machine Vision Unlock
Camera Kits with License, Lens, IP Cover, and Mount
0.3 Megapixel, Standard Lens
8211-1090-0102		HAWK MV-4000-03, AutoVISION + Visionscape, 9 mm Standard Lens, IP Cover, Universal Mount
8111-1160-0102		HAWK MV-4000-03, AutoVISION + Visionscape, 16 mm Standard Lens, IP Cover, Universal Mount
1.3 Megapixel, Standard Lens
8112-1120-0104		HAWK MV-4000-13, AutoVISION + Visionscape + Verification / OCV, 12.5 mm Std. Lens, IP Cover, Universal Mount
8112-1250-0104		HAWK MV-4000-13, AutoVISION + Visionscape + Verification / OCV, 25 mm Std. Lens, IP Cover, Universal Mount
1.3 Megapixel, High Resolution Lens
8212-2160-0104		HAWK MV-4000-13, AutoVISION + Visionscape + Ver. / OCV, 16 mm High Res. Lens, IP Cover, Universal Mount
8212-2250-0104		HAWK MV-4000-13, AutoVISION + Visionscape + Ver. / OCV, 25 mm High Res. Lens, IP Cover, Universal Mount
8212-2350-0104		HAWK MV-4000-13, AutoVISION + Visionscape + Ver. / OCV, 35 mm High Res. Lens, IP Cover, Universal Mount
2.0 Megapixel, Standard Lens
8113-1160-0104		HAWK MV-4000-20, AutoVISION + Visionscape + Verification / OCV, 16 mm Std. Lens, IP Cover, Universal Mount
8113-1350-0104		HAWK MV-4000-20, AutoVISION + Visionscape + Verification / OCV, 35 mm Std. Lens, IP Cover, Universal Mount
2.0 Megapixel, High Resolution Lens
8213-2160-0104		HAWK MV-4000-20, AutoVISION + Visionscape + Ver. / OCV, 16 mm High Res. Lens, IP Cover, Universal Mount
8213-2250-0104		HAWK MV-4000-20, AutoVISION + Visionscape + Ver. / OCV, 25 mm High Res. Lens, IP Cover, Universal Mount
8213-2350-0104		HAWK MV-4000-20, AutoVISION + Visionscape + Ver. / OCV, 35 mm High Res. Lens, IP Cover, Universal Mount
2.0 Color, Standard Lens
8117-1090-0102		HAWK MV-4000-20C, AutoVISION + Visionscape, 9 mm Standard Lens, IP Cover, Universal Mount
8117-1160-0102		HAWK MV-4000-20C, AutoVISION + Visionscape, 16 mm Standard Lens, IP Cover, Universal Mount
8117-1350-0102		HAWK MV-4000-20C, AutoVISION + Visionscape, 35 mm Standard Lens, IP Cover, Universal Mount
5.0 Megapixel, 1" Lens
8014-3160-0104		HAWK MV-4000-50, AutoVISION + Visionscape + Verification / OCV, 16 mm 1" Lens, No Cover, Universal Mount
8214-3250-0104		HAWK MV-4000-50, AutoVISION + Visionscape + Verification / OCV, 25 mm 1" Lens, IP Cover, Universal Mount
8214-3350-0104		HAWK MV-4000-50, AutoVISION + Visionscape + Verification / OCV, 35 mm 1" Lens, IP Cover, Universal Mount

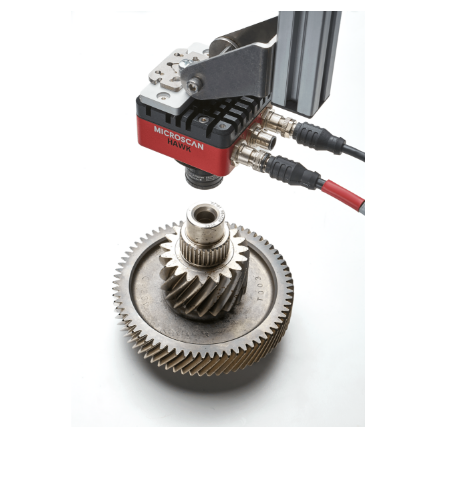

邁思肯Microscan HAWK MV-4000 智能相機應用

汽車零件，電子行業，制造行業，模具行業等

規格表

邁思肯Microscan HAWK MV-4000 智能相機應用

關于我們

聯系我們
